4 string baritone guitar






You can see the making of this guitar in the ‘anatomy of a build post’

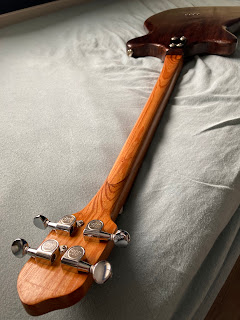

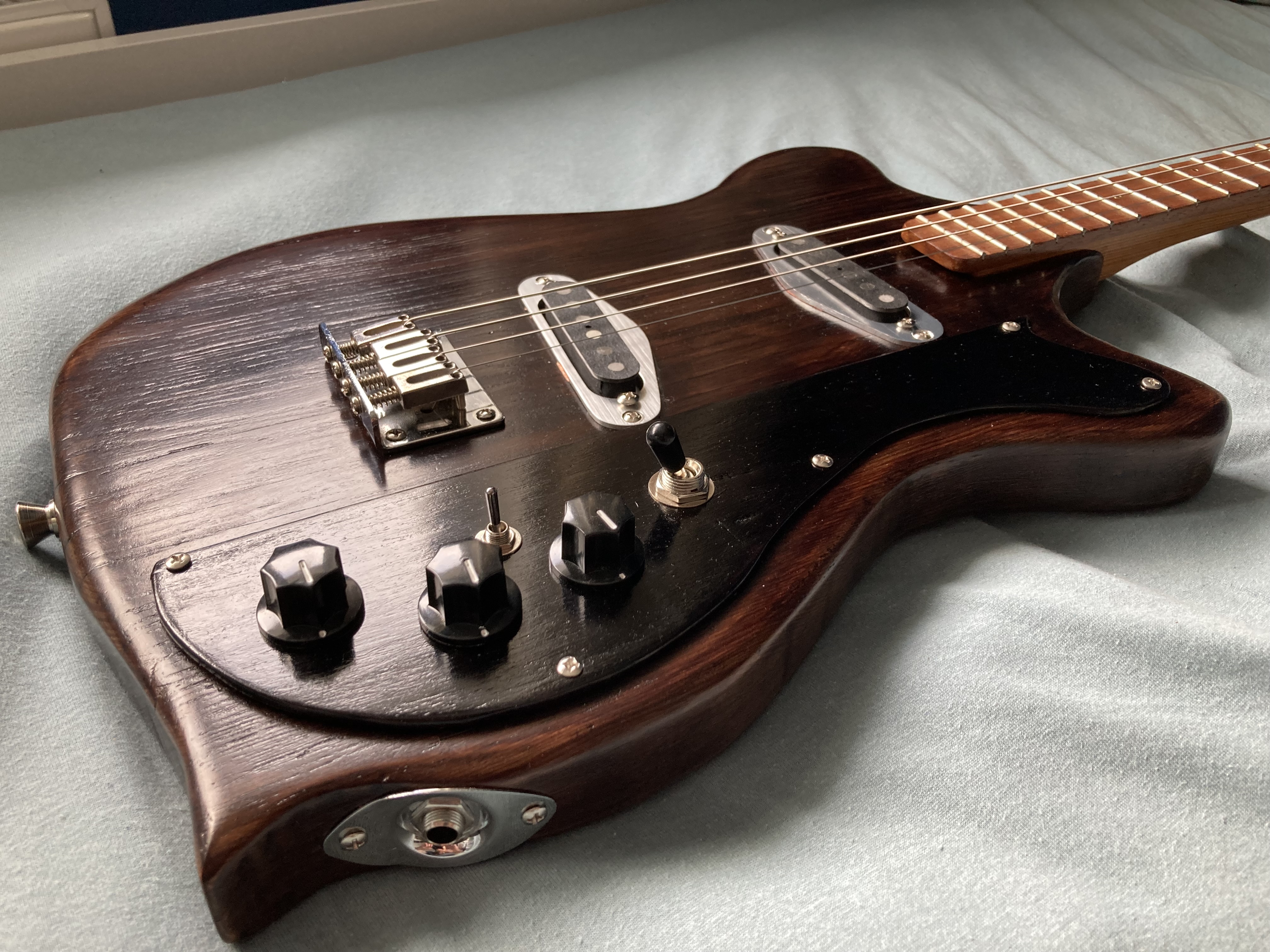

Single piece reclaimed pitch pine body from a Victorian hospital bench. Neck from same material.

27” scale, tuned low cgda

Finger board and pickguard made from mahogany from a 1910s gramaphone case.

Finished in tinted button shellac on body, and button shellac on neck.

Single coil mustang style Alnico 5 pickups, hardtail strat bridge, bone nut. Wired with bass and treble cut and series/parallel switching
